[Isaac sim Tutorial] Part 2. Ros2 Cameras

출처

https://docs.isaacsim.omniverse.nvidia.com/5.0.0/ros2_tutorials/tutorial_ros2_camera.html

ROS 2 Cameras — Isaac Sim Documentation



https://docs.isaacsim.omniverse.nvidia.com/5.0.0/robot_setup_tutorials/tutorial_gui_camera_sensors.html#isaac-sim-app-tutorial-gui-camera-sensors

Tutorial 4: Add Camera and Sensors to a Robot — Isaac Sim Documentation



https://docs.isaacsim.omniverse.nvidia.com/5.0.0/ros2_tutorials/tutorial_ros2_camera_noise.html

Add Noise to Camera — Isaac Sim Documentation



ADDing cameras to turtulebot





baselinkk 아래에 camera를 추가



• 이전 회차에서 만들었던 turtle bot의 body에 camera1,2를 만들어줍니다. rigid body가 존재하는 a__namespace_base_footprint의 아래로 카메라를 넣어줘야 합니다.
• 카메라의 transform을 아래와 같이 설정해줍니다. 두 카메라의 y축 orientation을 반대로 해줍니다.







• 또한 windows > viewport를 선택해 이중창으로 하나의 시점을 perspective, 나머지 하나의 시점을 카메라로 설정해줄 수 있습니다.
• tools > sensors > camera inspector를 통해 scene 내에 존재하는 모든 카메라들을 살펴볼 수 있습니다.



Building the Grapth

target과 토픽명을 설정한다.

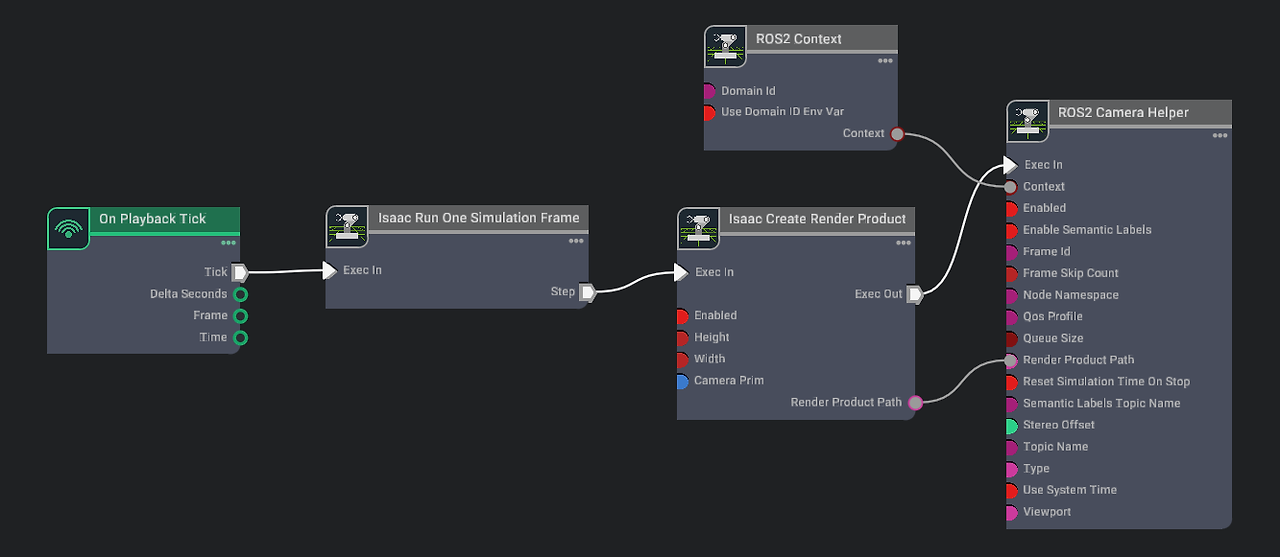

• omni grapth를 통해 시뮬상의 카메라 view를 ros topic 으로 연결합니다.
• isaac create render product에서 target을 아까 추가한 카메라 prim으로 잡아줍니다. 이후 ROS2 Camera helper에서 카메라의 토픽명과 타입을 설정할 수 있습니다.



ROS2 카메라 토픽을 Rviz2를 통해 확인





Rviz 상에서 시뮬레이션의 카메라를 토픽으로 받아올 수 있는 것을 확인하였습니다. 카메라가 두대로 늘어난다면 omni grapth를 추가한다면 앞뒤 카메라를 설정할 수 있을 것입니다!



camera1,2 토픽을 연결한 모습





Adding noise to camera

/rgb_augmentated가 나오는 모습

cd ~/isaacsim
./python.sh standalone_examples/api/isaacsim.ros2.bridge/camera_noise.py

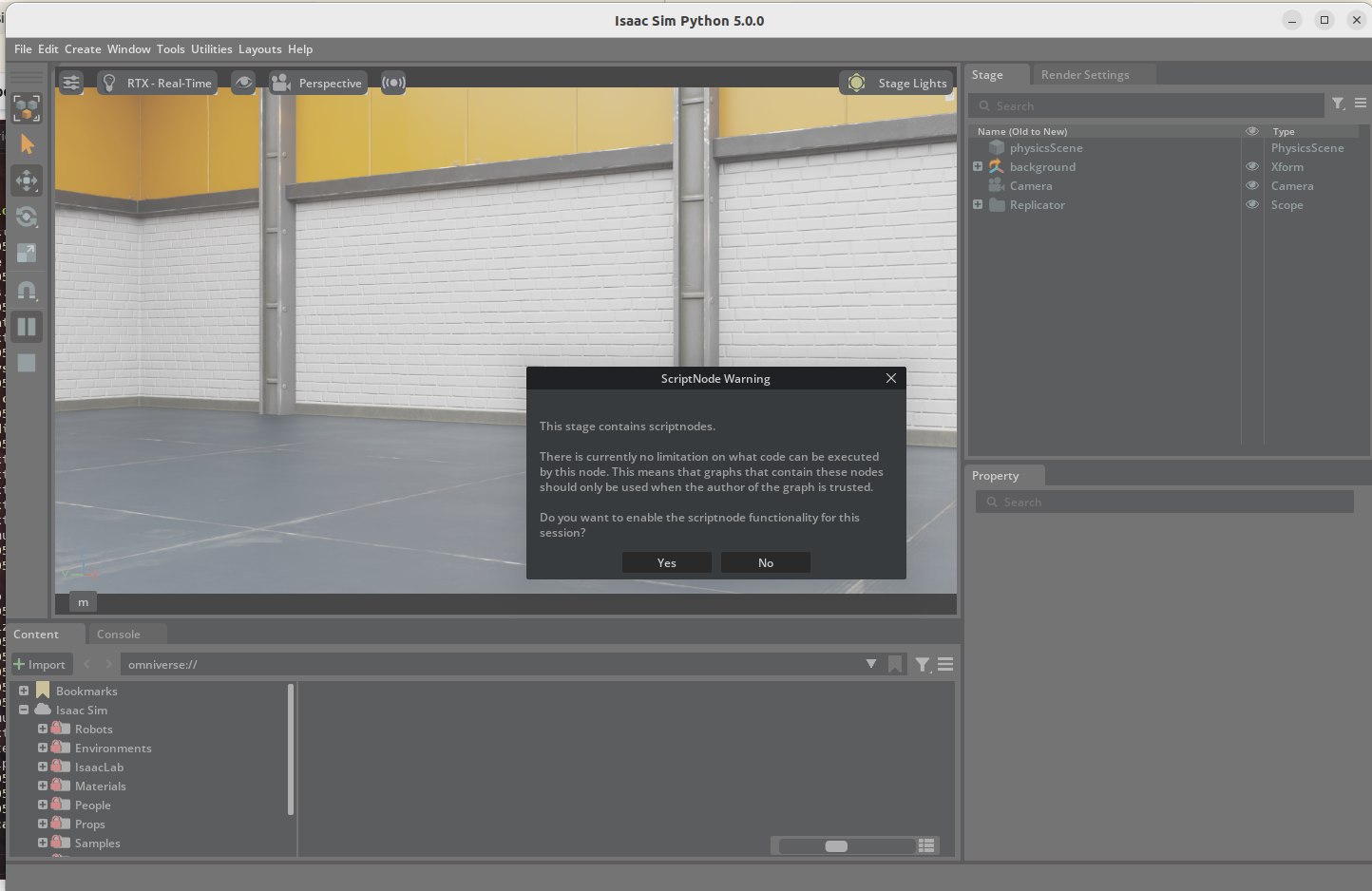

• isaac sim ros2가 source된 터미널(rclpy가 load가능한)에서 위의 명령어를 입력한 후 script warnning을 check한다.





ros workspace를 source한다.

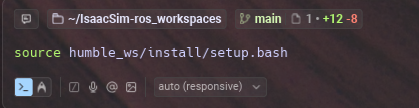

• 먼저 내 host ros2 workspace를 source한다.

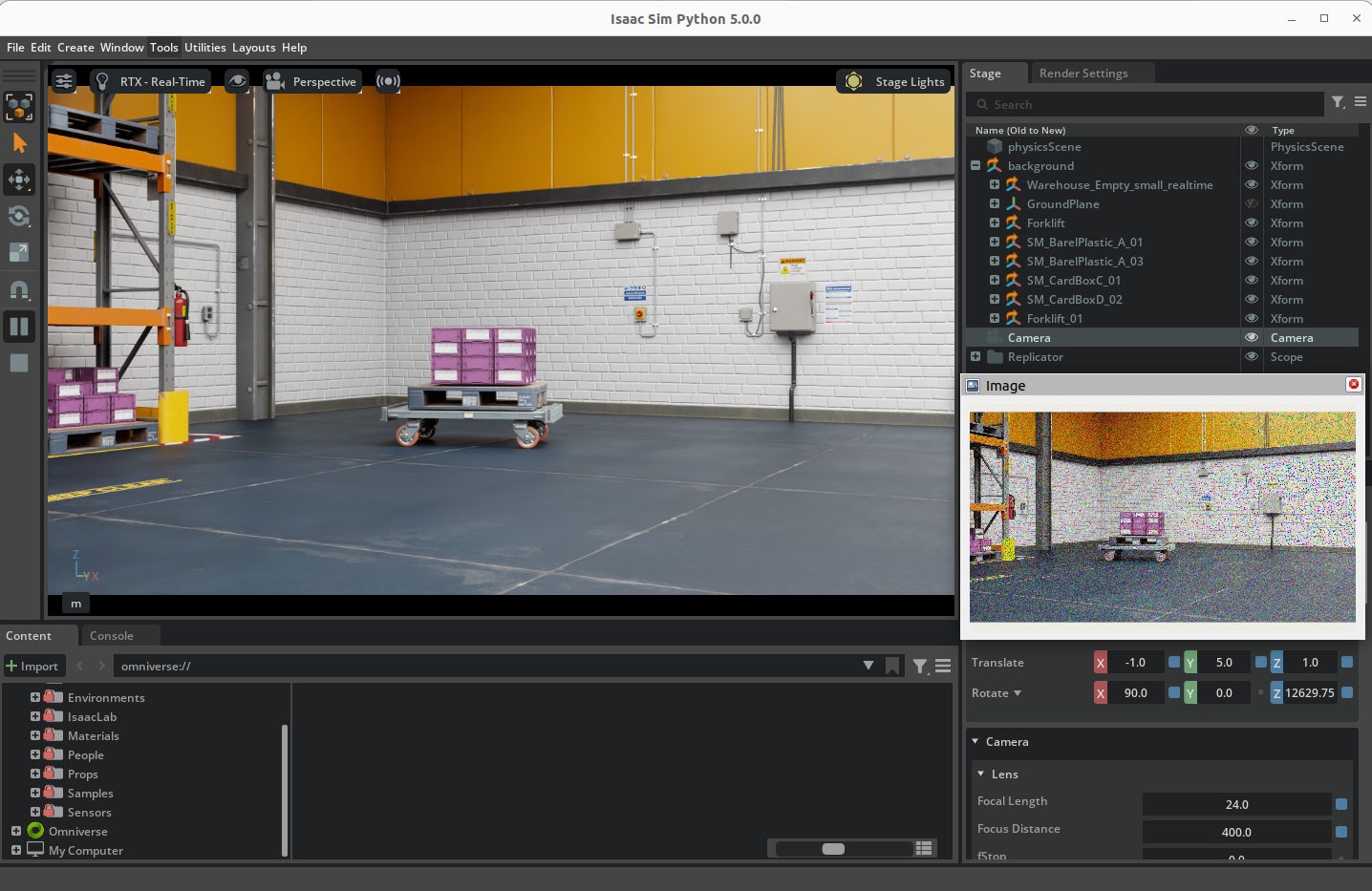

• 이후 rviz2로 augmentated된 rgb토픽을 확인한다. 그러면 이렇게 노이즈가 추가된 카메라 이미지를 얻을 수 있다.



# SPDX-FileCopyrightText: Copyright (c) 2020-2025 NVIDIA CORPORATION & AFFILIATES. All rights reserved.
# SPDX-License-Identifier: Apache-2.0
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

import sys

from isaacsim import SimulationApp

CAMERA_STAGE_PATH = "/Camera"
ROS_CAMERA_GRAPH_PATH = "/ROS_Camera"
BACKGROUND_STAGE_PATH = "/background"
BACKGROUND_USD_PATH = "/Isaac/Environments/Simple_Warehouse/warehouse_with_forklifts.usd"

CONFIG = {"renderer": "RaytracedLighting", "headless": False}

simulation_app = SimulationApp(CONFIG)
import carb
import numpy as np
import omni
import omni.graph.core as og
import omni.replicator.core as rep
import omni.syntheticdata._syntheticdata as sd
import warp as wp
from isaacsim.core.api import SimulationContext
from isaacsim.core.utils import extensions, stage
from isaacsim.core.utils.render_product import set_camera_prim_path
from isaacsim.storage.native import get_assets_root_path
from omni.kit.viewport.utility import get_active_viewport
from pxr import Gf, Usd, UsdGeom

# enable ROS bridge extension
extensions.enable_extension("isaacsim.ros2.bridge")

simulation_app.update()

simulation_context = SimulationContext(stage_units_in_meters=1.0)

# Locate Isaac Sim assets folder to load environment and robot stages
assets_root_path = get_assets_root_path()
if assets_root_path is None:
    carb.log_error("Could not find Isaac Sim assets folder")
    simulation_app.close()
    sys.exit()

# Loading the simple_room environment
stage.add_reference_to_stage(assets_root_path + BACKGROUND_USD_PATH, BACKGROUND_STAGE_PATH)

# Creating a Camera prim
camera_prim = UsdGeom.Camera(omni.usd.get_context().get_stage().DefinePrim(CAMERA_STAGE_PATH, "Camera"))
xform_api = UsdGeom.XformCommonAPI(camera_prim)
xform_api.SetTranslate(Gf.Vec3d(-1, 5, 1))
xform_api.SetRotate((90, 0, 0), UsdGeom.XformCommonAPI.RotationOrderXYZ)
camera_prim.GetHorizontalApertureAttr().Set(21)
camera_prim.GetVerticalApertureAttr().Set(16)
camera_prim.GetProjectionAttr().Set("perspective")
camera_prim.GetFocalLengthAttr().Set(24)
camera_prim.GetFocusDistanceAttr().Set(400)

simulation_app.update()

# grab our render product and directly set the camera prim
render_product_path = get_active_viewport().get_render_product_path()
set_camera_prim_path(render_product_path, CAMERA_STAGE_PATH)


# GPU Noise Kernel for illustrative purposes, input is rgba, outputs rgb
@wp.kernel
def image_gaussian_noise_warp(
    data_in: wp.array3d(dtype=wp.uint8), data_out: wp.array3d(dtype=wp.uint8), seed: int, sigma: float = 0.5
):
    i, j = wp.tid()
    dim_i = data_out.shape[0]
    dim_j = data_out.shape[1]
    pixel_id = i * dim_i + j
    state_r = wp.rand_init(seed, pixel_id + (dim_i * dim_j * 0))
    state_g = wp.rand_init(seed, pixel_id + (dim_i * dim_j * 1))
    state_b = wp.rand_init(seed, pixel_id + (dim_i * dim_j * 2))

    data_out[i, j, 0] = wp.uint8(float(data_in[i, j, 0]) + (255.0 * sigma * wp.randn(state_r)))
    data_out[i, j, 1] = wp.uint8(float(data_in[i, j, 1]) + (255.0 * sigma * wp.randn(state_g)))
    data_out[i, j, 2] = wp.uint8(float(data_in[i, j, 2]) + (255.0 * sigma * wp.randn(state_b)))


# register new augmented annotator that adds noise to rgba and then outputs to rgb to the ROS publisher can publish
rep.annotators.register(
    name="rgb_gaussian_noise",
    annotator=rep.annotators.augment_compose(
        source_annotator=rep.annotators.get("rgb", device="cuda"),
        augmentations=[
            rep.annotators.Augmentation.from_function(
                image_gaussian_noise_warp, sigma=0.1, seed=1234, data_out_shape=(-1, -1, 3)
            ),
        ],
    ),
)

# Create a new writer with the augmented image
rep.writers.register_node_writer(
    name=f"CustomROS2PublishImage",
    node_type_id="isaacsim.ros2.bridge.ROS2PublishImage",
    annotators=[
        "rgb_gaussian_noise",
        omni.syntheticdata.SyntheticData.NodeConnectionTemplate(
            "IsaacReadSimulationTime", attributes_mapping={"outputs:simulationTime": "inputs:timeStamp"}
        ),
    ],
    category="custom",
)
# Register writer for Replicator telemetry tracking
(
    rep.WriterRegistry._default_writers.append("CustomROS2PublishImage")
    if "CustomROS2PublishImage" not in rep.WriterRegistry._default_writers
    else None
)

# Create the new writer and attach to our render product
writer = rep.writers.get(f"CustomROS2PublishImage")
writer.initialize(topicName="rgb_augmented", frameId="sim_camera")
writer.attach([render_product_path])

simulation_app.update()
# Need to initialize physics getting any articulation..etc
simulation_context.initialize_physics()
simulation_context.play()

frame = 0

while simulation_app.is_running():
    # Run with a fixed step size
    simulation_context.step(render=True)

    if simulation_context.is_playing():
        # Rotate camera by 0.5 degree every frame
        xform_api.SetRotate((90, 0, frame / 4.0), UsdGeom.XformCommonAPI.RotationOrderXYZ)

        frame = frame + 1

simulation_context.stop()
simulation_app.close()
